Electronic Platform Scales
Platform Scale is an industrial weighing instrument consisting of a platform coupled to an automatic system of levers and adjustable weights, used to weigh large or heavy objects.

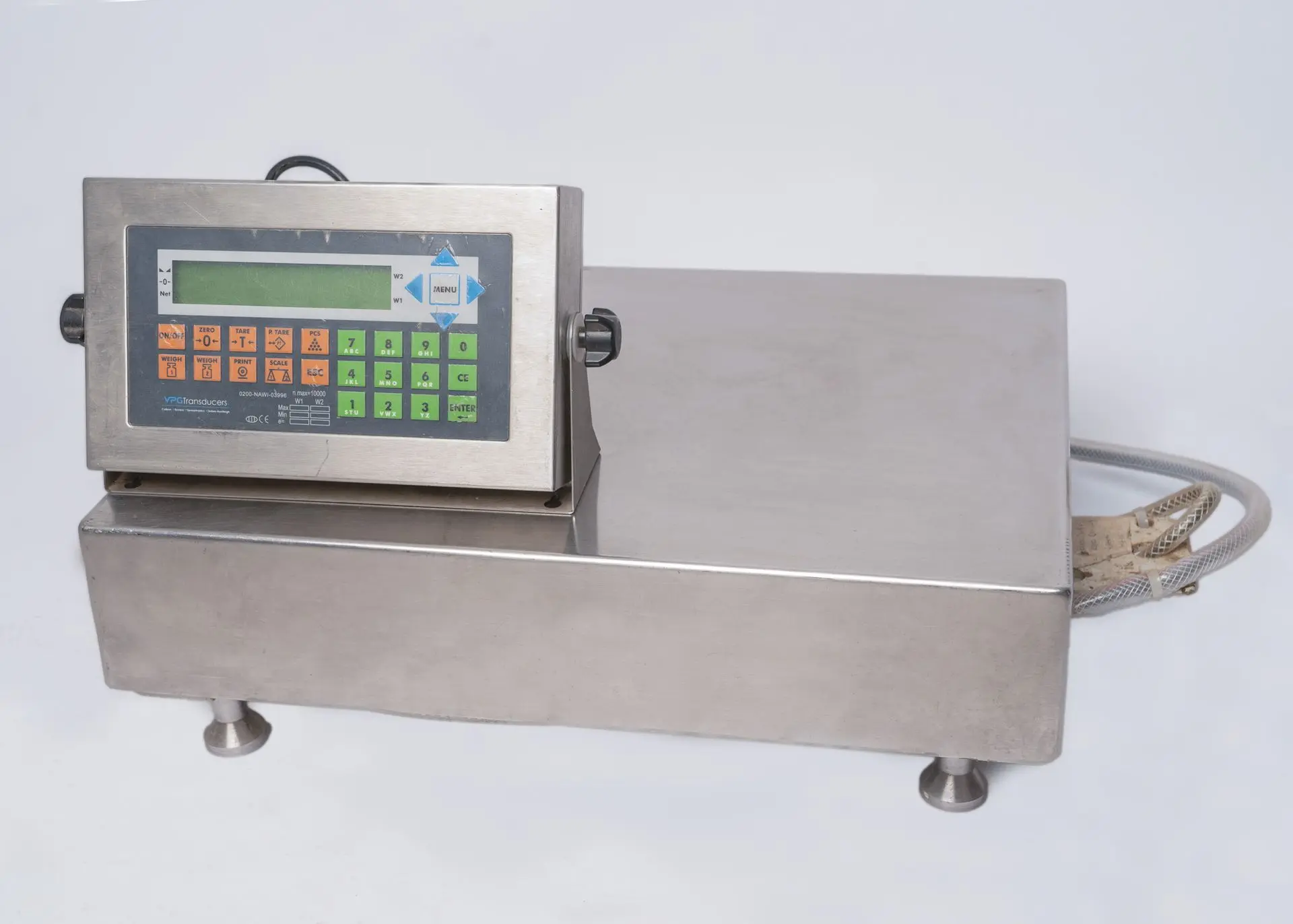

01. BWS-1 SERIES
The load-cell cable to the indicator is fitted it in a nylon tube to protect it from mechanical damage and secured at the two ends such for the nylon tube takes tension should there be some pulling. The type of indicator will depend on application. It can be one with either rechargeable battery or one powered directly from the Mains. The enclosure may also be stainless steel or other with varying degrees of protection.
Specifications:
- Fabricated from mild steel sections and plates with an option of top stainless steel cover
- Is fitted with single point load cells.
- Capacities range from 100kg to 300kg
- Dimensions of the platforms range from 450mm x 450mm to 800mm x 800mm.
- Finished with epoxy paint or hammer finish
- Fitted with a digital indicator
Features:
- Fully welded type with removable top cover
- Overload protection of load cell
Request a quote for any Electronic Platform Scales Machine for your business
Send us a request and we shall share a quote to you immediately
02. BWS-4 SERIES
A heavy-duty industrial platform scale designed for accuracy, durability, and ease of use in demanding environments. The platform is fabricated from mild steel sections and plates with an optional stainless steel or non-skid top cover, making it highly resistant to corrosion, dust, and moisture. Ideal for use in warehouses, factories, and industrial applications requiring robust performance and hygiene.
Specifications
- Constructed of mild steel channels and
- chequered plate sand blasted and painted
- Dimensions: 1000 mm x 1000 mm; 1200 mm x
- 1200 mm; 1500 mm x 1500 mm Capacities
- 500kg -3000kg No of load cells - 4 Overload Protection: 200%
- IP Rating: IP65 Indicator:
- Power: AC/DC,
- built-in rechargeable battery (100 hrs)
- Warranty: 1 year limited warranty on electronics 2 year limited warranty on platform
- Approvals: Legal for Trade: NTEP Certified at 5,000 divisions, Class III
Application of platform scale
- Warehousing: Weighing pallets, inventory, and bulk goods.
- Manufacturing: Raw material measurement and quality control.
- Logistics: Parcel and cargo weighing for accurate shipping costs.
- Agriculture: Weighing produce, feed, and fertilizers.
- Construction: Measuring raw materials like cement, sand, and gravel.
- Retail: for supermarkets and wholesale stores.
Request a quote for any Electronic Platform Scales Machine for your business
Send us a request and we shall share a quote to you immediately

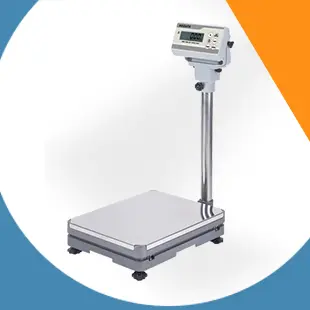

03. KW-SERIES
High quality electronic platform scale with auto calibration features, keyboard with audible feedback and much more.
Feature:
- Auto calibration
- Auto zero and full tare
- 1/6000 display resolution
- Keyboard with audible feedback
- Adjustable indicator for easy viewing
- Overload protection patent design for load-cell
- Selectable weighing mode: kg or lb
- Alert user when reaching preset weight
- Tool steel load cell accuracy and sturdy
- High quality die-cast aluminum platform
- Special inner platform design to prevent dust and water drifting
Request a quote for any Electronic Platform Scales Machine for your business
Send us a request and we shall share a quote to you immediately

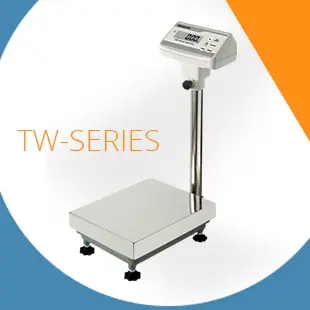

04. BWS-TW-SERIES-Washdow
Suitable operation in high moisture, dusty and erosion environments including fish markets, food processing industries, chemical industries, casting factories etc.
Features:
- Waterproof and dustproof meet IP65 regulation.
- Fast, clear and stable digital display.
- Capacities from 30kg to 300kg.
- Patent washdown sealed ABS base resist water and dust.
- Flat keyboard with audible feedback.
- Auto calibration function.
- Auto zero and full tare function.
- Kg or lb weighing unit conversion.
- Net weight and gross weight mode
- High and low limited weight value.
- Build-in rechargeable battery and AC power.
- Low battery and charging signal.
- Adjustable feet and level design.
- Optional selection for black 1″ LCD or red 0.6″ LED or red 1″ LED display.
Request a quote for any Electronic Platform Scales Machine for your business
Send us a request and we shall share a quote to you immediately
Request a Quote for an Electronic Platform scale
Provide us with more details about the electronic platform scale you are looking for and we shall get back to you immediately.
