Weigh Bridges
Weigh Bridges
Weigh bridges, also known as Truck scales, are large scales designed to weigh vehicles such as trucks, both when empty and when loaded, to calculate the load carried by the vehicle. These scales are typically used in industries like logistics, agriculture, construction, and manufacturing to ensure compliance with weight regulations, prevent overloading, and manage inventory accurately. Truck scales can be surface-mounted or pit-mounted, depending on the space and operational requirements.

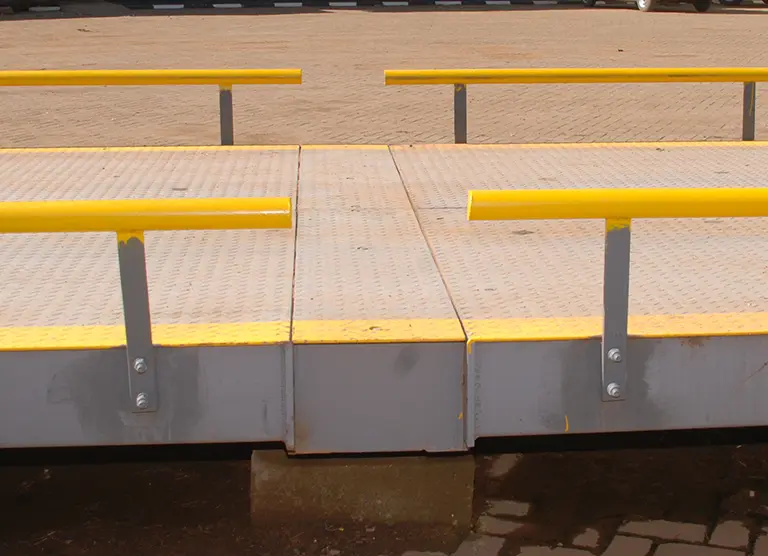

BWS-W.BRIDGE
The Weighbridge is fabricated from modular orthotropic U- beams welded to anti chequer steel plates and is fitted with 4, 6, or 8 hermetically sealed compression type or beam digital or analog load cells.
The capacities range from 20,000kg to 100,000kg. The deck dimensions depend on usage and may range from 6m -21m in length with a standard width of 3000mm. The weighbridge may be either pit or surface mounted depending on customer requirements and availability of space. The weighbridge is fitted either to a digital indicator with an alphanumeric keyboard and a printer or a simple indicator and a PC loaded with Bytronics WeighSOFT weighbridge weighing software and a printer.
Features
- Weighbridges are fully welded type and moduorthotropiclar for ease of handling during transportation and installation.
- The orthotropic beams are 220-250mm deep and require shallow pits which are cheaper to construct and easier to drain.
- The weighbridges are fitted with service plates at each load cell location for maintenance purposes
- The load cells are OIML certified, current calibrated making it easier to calibrate with little or no corner trimming to achieve equal loading on the weighbridge platform.
- Well protected by being blast cleaned and painted.
- The whole weighbridge structure is earthed at all the load cell plates to protect from lightning strikes.
- Where the load cells do not have inbuilt surge protection such as the beam type a lightning protection unit is incorporated within or outside the junction box.
Specifications
Item | Description | Specification |
1 | Capacity | 50.000kg -100000kg |
2 | Dimensions | 18000mm long X 3000mm wide |
3 | Type | Either Pit or Surface mounted |
4 | Structure | Steel beams with chequer plates in modules of 1.5m x 5.8m long with weigh bars, the quantity of which depends on length and capacity of the weighbridge |
5 | No. of load cells | Depends on length and capacity |
6 | No. of modules | Depends on length and capacity |
7 | Protection | Blast cleaned and Painted |
8 | Accessories | Any indicator Type approved, lightning protection, cables, junction box included |
9 | Civil works | This comprise excavation, reinforced concrete for walls and load cell plinths, ramps etc. |
Request a quote for a Weigh Bridge
Send us a request and we shall share a quote to you immediately

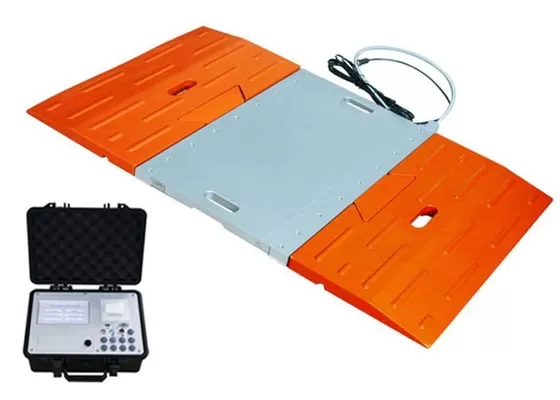

BWS-PORTABLE AXLE WEIGHER
The Weighbridge is fabricated from modular orthotropic U- beams welded to anti chequer steel plates and is fitted with 4, 6, or 8 hermetically sealed compression type or beam digital or analog load cells.
Features
- Has multiple load cells in each weigh pad integrated in a slim structure with light weight of less than 20kg per pad.
- Designed to withstand vehicle impacts and protected against water ingress
Application
- Weighing in construction, forestry and waste disposal industries and axle load enforcement on roads
- Weighing of planes in aviation industry
- Weighing of axle and wheel weights in vehicles production lines.
- General weighing of wheel and axle of vehicles in the distribution systems as in ware houses.
Specifications
Item | Description | Specification |
1 | Axle weighing range | 20.000kg-40000kg |
2 | Dimensions | 6000mm long X 3000mm widex280mm high |
3 | Display | LCD 13mm high, Single and double axle display |
4 | Accuracy | SStatic +- 0.3% FS and Dynamic +_1%FS |
5 | No. of load cells | Multiple load cells in the weigh pad |
6 | Velocity 3-km/h | 3-km/h |
7 | Use Temperature Range | 10-60C |
8 | Relative humidity | 90% |
9 | Cables* | included |
